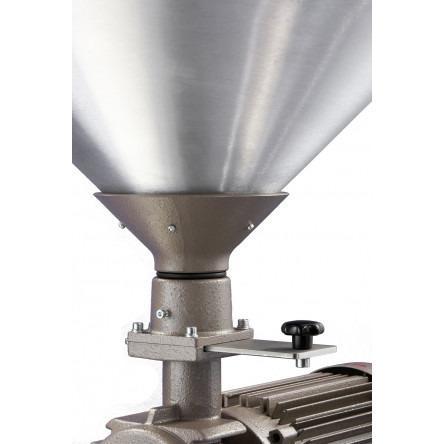

Mahlkonig DK15 Industrial Coffee Grinder
Product Description
The enduring one of the MAHLKONIG Industrial Coffee Grinders
The smaller daughter of the DK27.
The DK15 is a great option for roasters who are looking for an increased hopper capacity and continuous grinding. This model grinds ~250 lbs/hr with a 60 lb hopper capacity.
• Small space requirement
• Movable container for the ground product
• Tight discharge chute for dustreduced
grinding
• Large hoppers
• Lock plate to interrupt the feeding of the product
to be ground
• Integrated hopper magnets as a protection
against metal in the product
• Powerful three-phase motors with surface cooling
and high starting torque.This makes them very
suitable for continuous use.
• Air cooling of grinder casing
• Service-free, constantly greased bearings
• Motor protection against electrical overload
• Extremly wear resistant, precision grinding discs
for careful cutting of the material
• The grind adjustment wheel provides fine, accurately
repeatable control of the degree of grinding finess.
• DK 15 LS with burrs from tool steel – double sided
to double the life time of the burrs.
• DK 15 LH with burrs from tungsten carbide – double sided
for up to 20 times longer life time of the burrs
Product Specifications
| Hopper Capacity |
60 lbs |
| Grinding Capacity – fine to medium |
250 lbs/h |
| Voltage |
208 - 220 V |
| Frequency / Phases |
60 Hz / Three-Phase |
| Motor - rated power, Amps / hp |
9.7 Amps / 3 hp |
| Grinding Disc Diameter |
130 mm |
| Grinding Disc Material |
Tool Steel |
| Dimensions (w x d x h) |
31.1“ x 48.4“ x 61.0“ |
| Net weight |
291.0 lbs |
| Shipping Weight |
478.4 lbs |
| EQUIPMENT FEATURES |
|
| Container |
200l, mobile (53 gal) |
| Container dimensoins (w x d x h) |
27.2“ x 31.1“ x 27.6“ |
| Hopper Magnet |
Yes |
| Overload Protection |
Yes |
| Shot Counter |
Yes |
| Standard colours (structured paint) |
Grey-red or Copper
|
| SPECIAL FEATURES |
|
| Other Grinding Goods |
Coffee,spices, grains, poppy seed, linseed |
| Tungsten Carbide Discs |
Yes |
| Pod-Grinding |
Yes |
