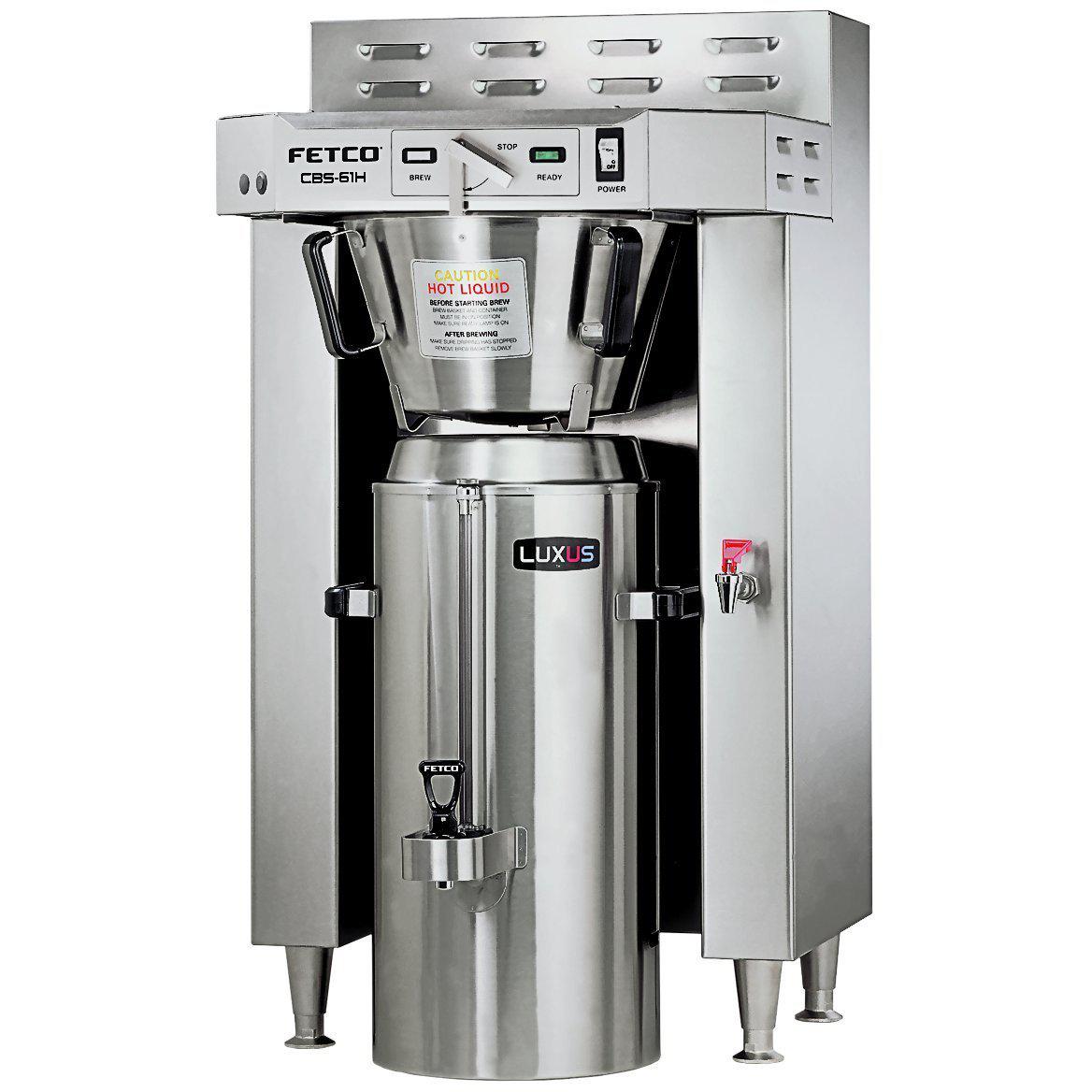

Fetco CBS-61H-30 Single Station Brewer C61016
High volume hot beverage at your fingertips! Completely mobile solution for high volume demand, the CBS-61H allows you to brew directly into the 3.0 gallon LUXUS Thermal Dispenser without the need for an additional heat source.
Features
Popular Choice
The 3.0 gallon brewer is a popular choice for high volume satellite coffee service in banquet halls, large hotels, cafeterias and catering operations.
Extend Your Service
Brew directly into the ultra durable TPD-30 thermal dispensers and extend your indoor/outdoor beverage service capabilities (Listed below and sold separately).
Simple Handle Operation
Brew a batch of hot, delicious coffee with the simple turn of a handle.
Specifications
| MEASUREMENTS |
| Height (in.) |
40" |
| Width (in.) |
21 3/8" |
| Depth (in.) |
22 3/8" |
| Weight (lbs.) |
107 |
| BREWING CAPACITY |
| Volume (L) |
11.4 |
| Volume (g) |
3 gallons |
| Output (gph) |
12-27 |
| (8oz.) cups/hour |
≈475 |
| (12oz.) cups/hour |
≈317 |
| (16oz.) cups/hour |
≈238 |
| (20oz.) cups/hour |
≈190 |
| STANDARD ELECTRICAL CONFIGURATIONS |
| Electrical Configuration |
Terminal Block |
| Volts |
120/208-240, 480 |
| Amps |
22.1-33.8 |
| Phase |
1, 3 |
| SPECIAL FEATURES |
| Cascading Spray Dome |
No |
| Extractor Technology |
No |
| Pulse Brew |
No |
| Brew Basket Locks |
Yes |
| Hot Water Spigot |
Yes |
| PROGRAMMABLE |
| Programmable Brew Volume |
Yes |
| Programmable Brew Time |
Yes |
| Programmable Brew Temperature |
Yes |
| Programmable Pre-wet Percentage |
No |
| Programmable Drip Delay |
No |
| Programmable Low Temp |
No |
Resources
Sell Sheet
User's Guide
