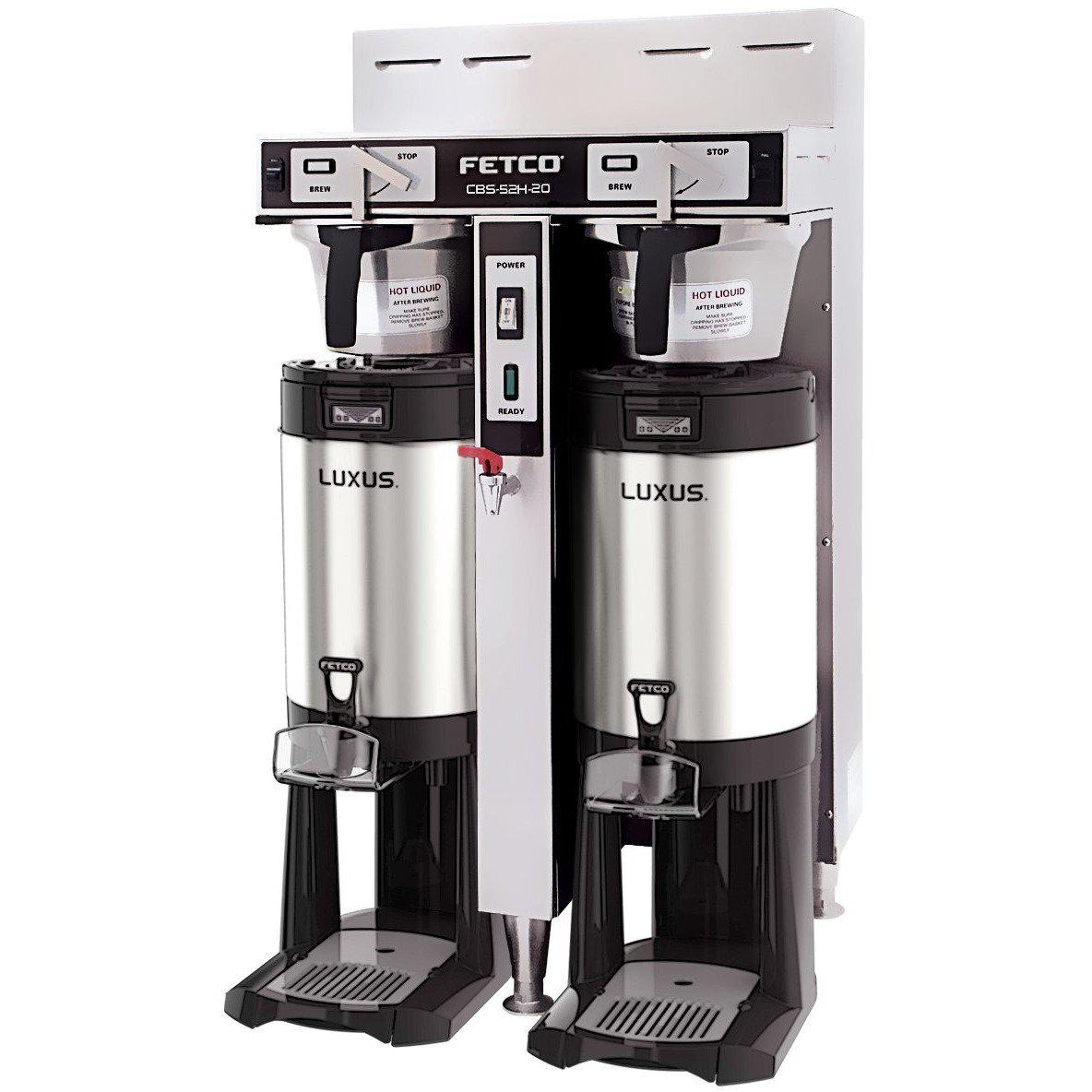

Fetco CBS-52H-20 Dual Station Brewer 3x4.0 kW/440-480V C53186
Brew directly into 2 gallon LUXUS Thermal Dispensers for high-volume beverage needs. The CBS-52H-20 features dual brew basket locks incorporated into the start switch, spray-over volume consistency and a patented dispense tube system that resists lime build-up.
Features
Simple Hand Operation
Brew a batch of hot, delicious coffee with the simple turn of a handle.
Two is Better Than One
Dual station configuration provides the flexibility of brewing two different recipes at the same time!
Intermittent Spray-Over
Our patented intermittent spray-over feature controls steeping process to deliver well-balanced, great tasting coffee from the first cup to the last.
Specifications
| MEASUREMENTS |
| Height (in.) |
39 3/8 |
| Width (in.) |
21 |
| Depth (in.) |
19 1/2 |
| Weight (lbs.) |
98 |
| BREWING CAPACITY |
| Volume (L) |
2 x 7.6 |
| Volume (g) |
2 x 2 |
| Output (gph) |
12-30 |
| (8oz.) cups/hour |
≈475 |
| (12oz.) cups/hour |
≈317 |
| (16oz.) cups/hour |
≈238 |
| (20oz.) cups/hour |
≈190 |
| STANDARD ELECTRICAL CONFIGURATIONS |
| Electrical Configuration |
Terminal Block |
| Volts |
120/208-240, 480 |
| Amps |
22.4-34.1 |
| Phase |
1, 3 |
| SPECIAL FEATURES |
| Cascading Spray Dome |
No |
| Extractor Technology |
No |
| Pulse Brew |
No |
| Brew Basket Locks |
Yes |
| Hot Water Spigot |
Yes |
| PROGRAMMABLE |
| Programmable Brew Volume |
Yes |
| Programmable Brew Time |
Yes |
| Programmable Brew Temperature |
Yes |
| Programmable Pre-wet Percentage |
No |
| Programmable Drip Delay |
No |
| Programmable Low Temp |
No |
