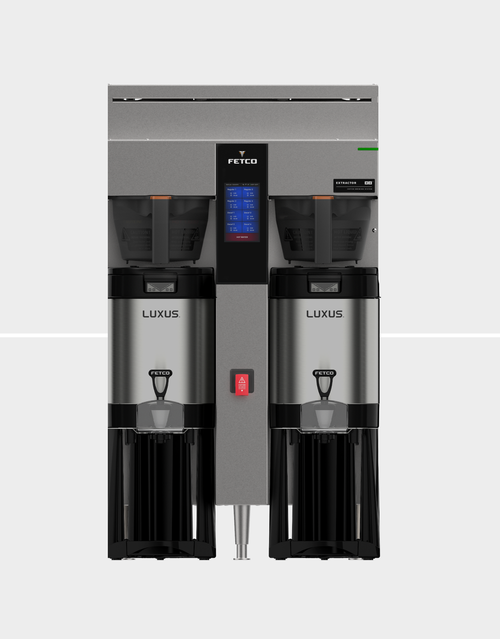

FETCO CBS-2242 NG Twin Station Coffee Brewer
**Thermal Dispensers shown in the pictures sold separately. Contact us for special discount on Brewer and Dispenser bundles.**
The CBS-2242 NG Twin Station Coffee Brewer is a perfect hot beverage solution in medium- to large-sized venues such as Banquet Halls, Cafeterias and Restaurants. Designed specifically for high-volume batch brewing, these high-quality brewers possess many of the legendary features and reliable performance you’ve come to expect from Extractor® branded products at a competitive price.
Features
-
LED Touchscreen Interface
-
Brew Status Indicator Light
-
Plastic Brew Basket
-
Brew Basket Sensors and Locks
-
Manual Hot Water Faucet
-
ECO Mode
-
USB Plug-in Feature
-
Electrical Lattice
-
Laser Welded Tank
Specifications
| Measurements |
| Height |
34.5 in / 87.6 cm |
| Width |
19.75 in / 50.2 cm |
| Depth |
20.5 in / 52 cm |
| Shipping Weight |
66 lbs / 30 kg |
| Capacity |
| Tank Capacity |
7.48 G / 28.31 L |
| 8 oz / 236 ml cup/hr |
255 |
| 12 oz / 355 ml cup/hr |
170 |
| 16 oz / 473 ml cup/hr |
128 |
| 20 oz / 591 ml cup/hr |
102 |
| Standard Electrical Configurations |
| Electrical Connection |
Terminal Block |
| Volts |
208-240 |
| Amps |
16.5-19.7 |
| Phase |
Single |
| Water Specifications |
| Water Inlet Size |
3/8" (Male Flare) |
| Minimum Flow Rate |
1.5 gpm |
| Water Pressure Requirement |
20-75 psig |
Resources
Spec Sheet
User Guide
