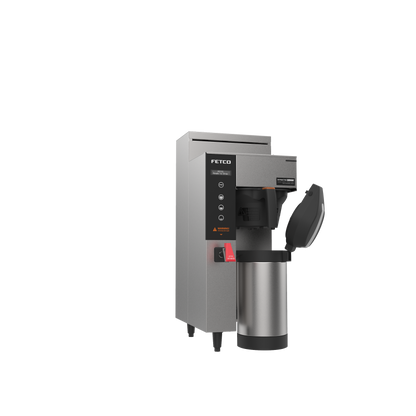

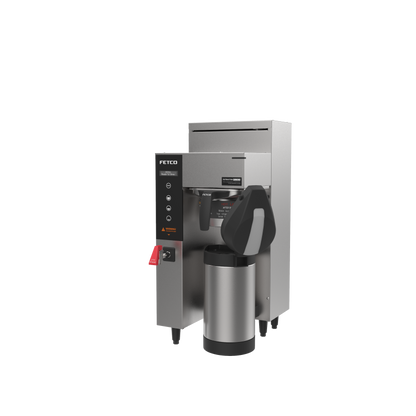

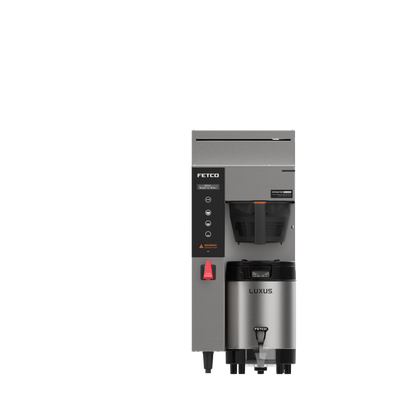

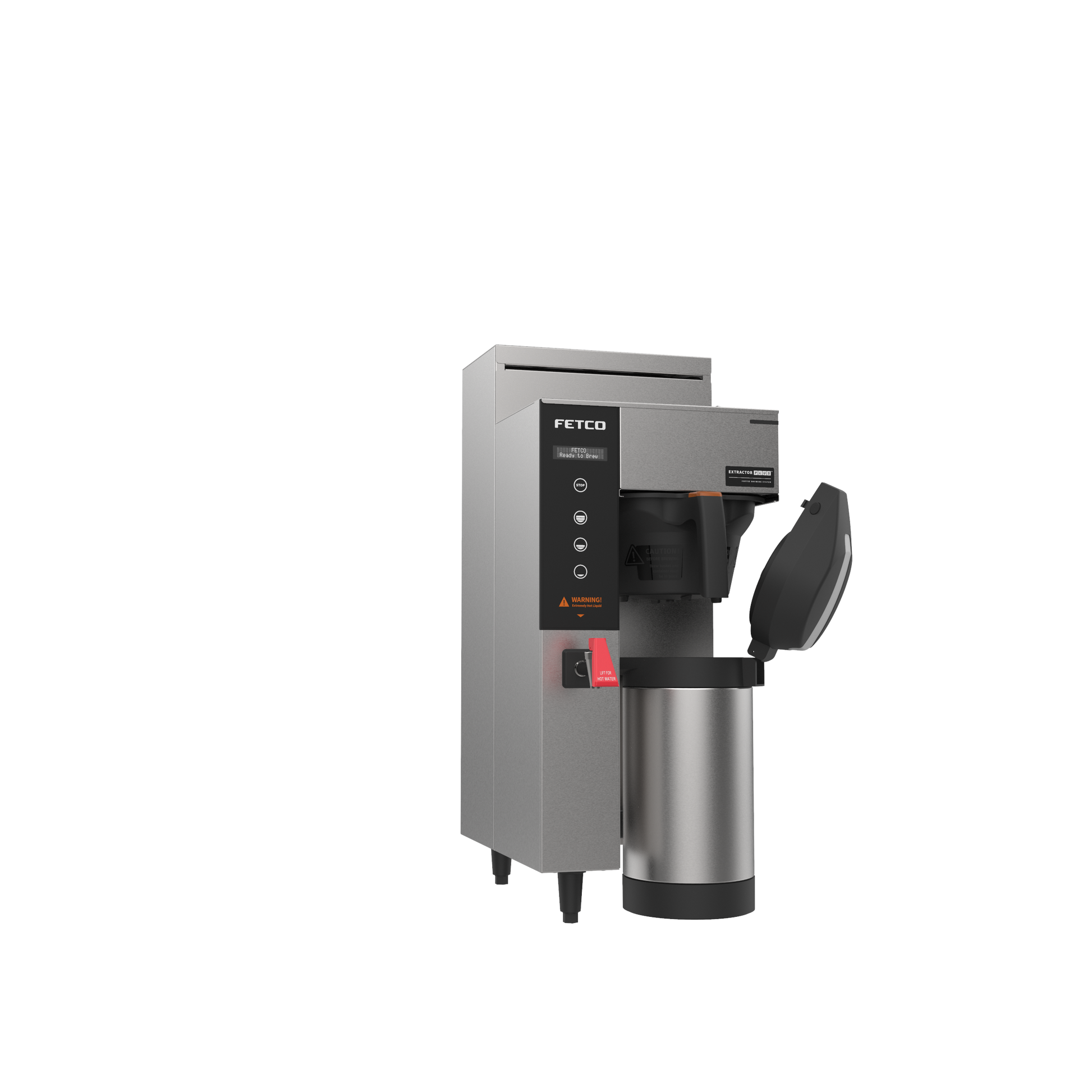

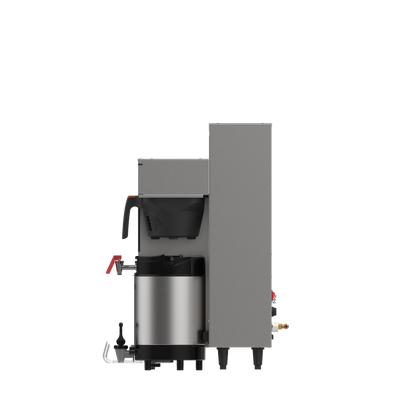

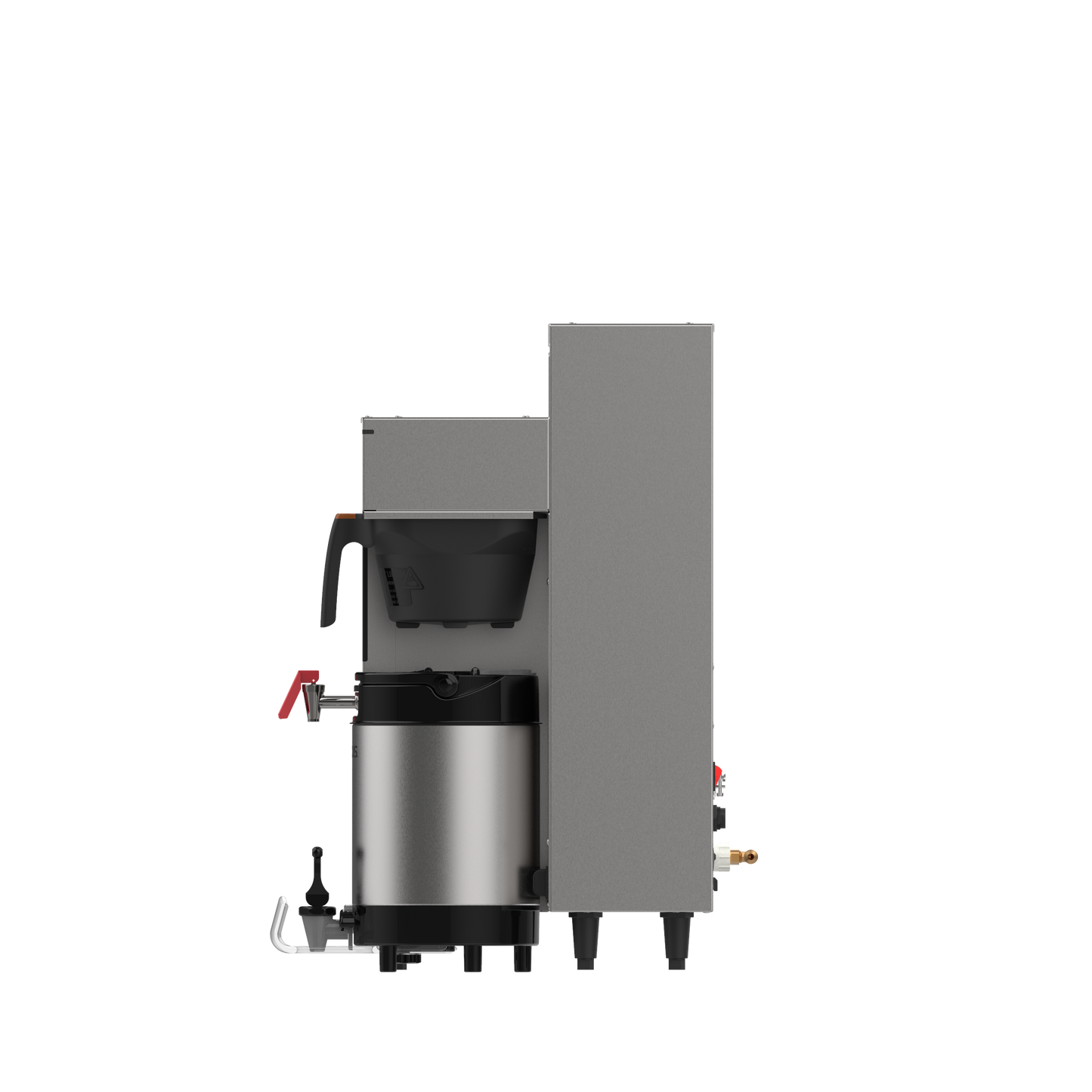

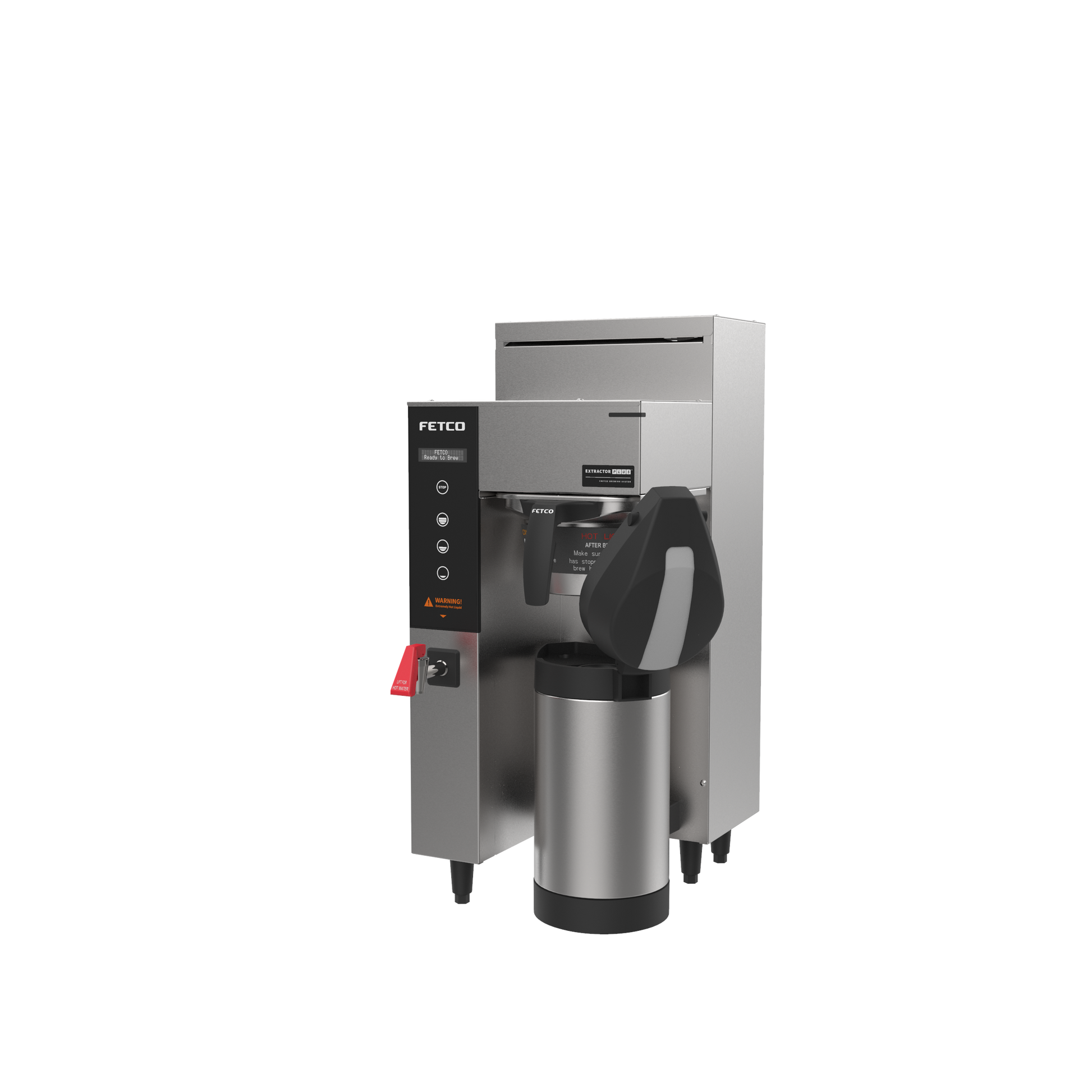

Fetco CBS-1231 Plus Series Single Station Coffee Brewer
The single station CBS-1231 Plus Series Single Station Coffee Brewer is a perfect hot beverage solution for low- to medium-volume self-service environments such as convenience stores, cafeterias, specialty coffee shops, or office coffee service (OCS). Designed specifically for smaller batch brewing, these high-quality brewers possess many of the legendary features and reliable performance you’ve come to expect from Extractor® branded products at a competitive price.
Standard Features
-
Plastic Brew Basket
-
Brew Basket Sensor
-
Manual Hot Water Faucet
-
ECO Mode
-
USB Plug-in Feature
-
Electrical Lattice
-
Laser Welded Tank
-
Push Button Interface
Specifications
| MEASUREMENTS |
| Height |
26.25 in / 66.7 cm |
| Width |
11.75 in / 29.9 cm |
| Depth |
20.5 in / 52 cm |
| Shipping Weight |
41 lbs / 18.6 kg |
| CAPACITY |
| Tank Capacity |
3 G / 11.36 L |
| 8 oz / 236 ml cup/hr |
127 |
| 12 oz / 355 ml cup/hr |
85 |
| 16 oz / 473 ml cup/hr |
63 |
| 20 oz / 591 ml cup/hr |
51 |
| STANDARD ELECTRICAL CONFIGURATIONS |
| Electrical Connection |
Cord and Plug |
| Volts |
120 or 200-240 or 208-240 |
| Amps |
13-19.7 |
| Phase |
Single |
| *Please see international spec sheet for additional configurations |
| WATER SPECIFICATIONS |
| Water Inlet Size |
3/8" (Male Flare) |
| Minimum Flow Rate |
1.5 gpm |
| Water Pressure Requirement |
20-75 psig |
