Description
FRIIA is a premium water delivery system specially created for the modern office, canteen, coffee shop, or gym. Using award-winning technology, Marco developed this all-in-one solution with combined hot water, cold water, and sparkling water capabilities. Whether FRIIA is providing self-service to customers or meeting the needs of busy employees, it can generate cup after cup for teas, refreshing cold water, and healthy carbonated beverage options at a continuous rate.
With a 0.8 or 2.1 gallon immediate hot draw-off, FRIIA models supply 156 180 ml cups of hot water per hour and up to 250 cups of chilled or sparkling water per hour. The chiller is designed to flourish in a restaurant, office, or any environment that requires by-the-cup service. Even during peak hours, FRIIA will accommodate back-to-back cup fill needs.
The beauty of FRIIA is in its comprehensive functionality coupled with a minimalist design. Beautifying the break room with an elegant font in brushed metal and LED lighting, FRIIA comes with a boiler and chiller discreetly tucked away out of sight to provide maximum countertop space and visual appeal. A font drip tray that comes with FRIIA will catch any overflow and keep the space clean and tidy. Installation is also a breeze, creating the opportunity for fast service in an energy-efficient, fuss-free package. If you’re looking to ditch plastic water bottles and replace them with a green alternative, FRIIA will give your employees multiple healthy beverage options in one eco-friendly system.
How it Works

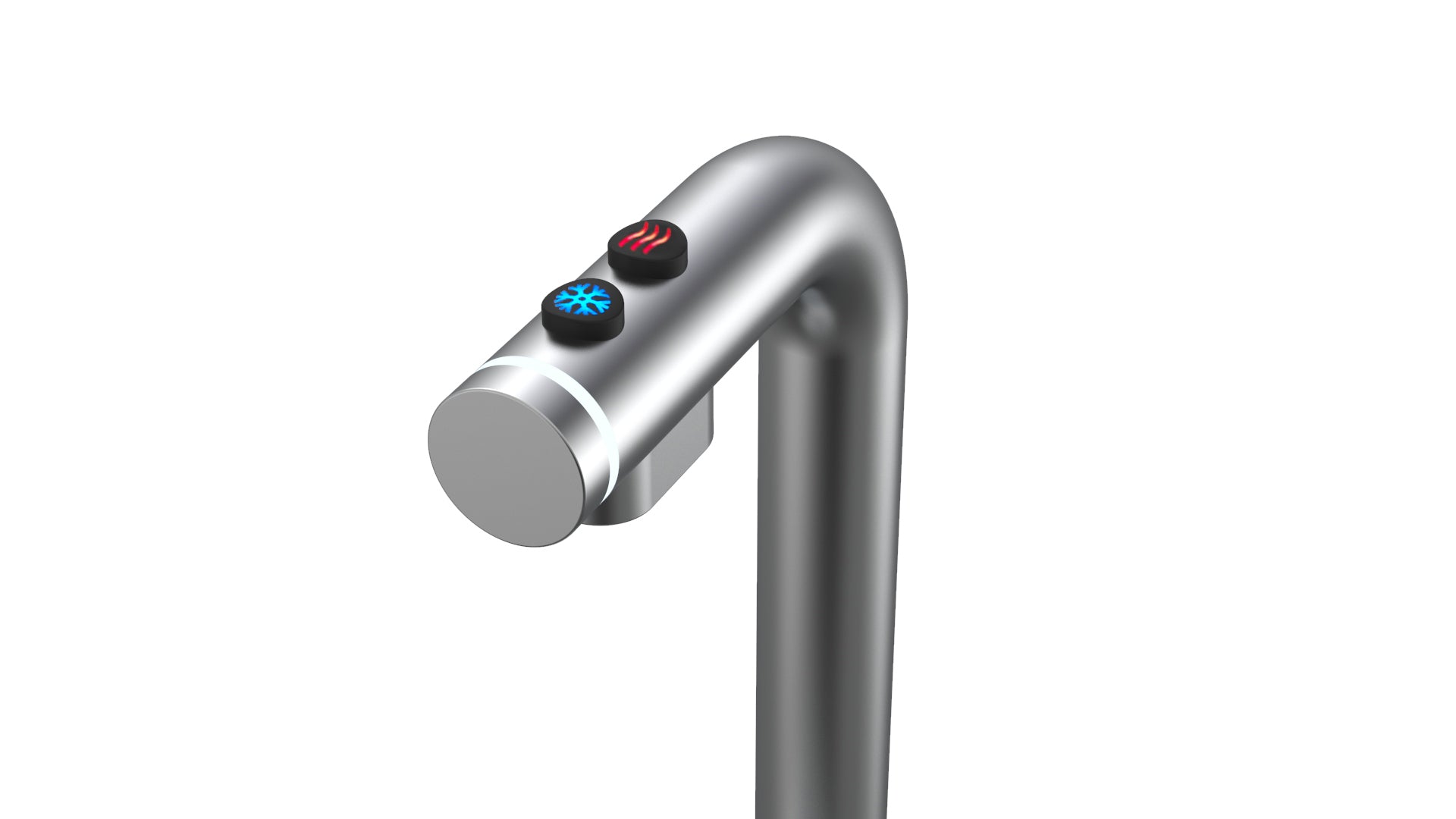

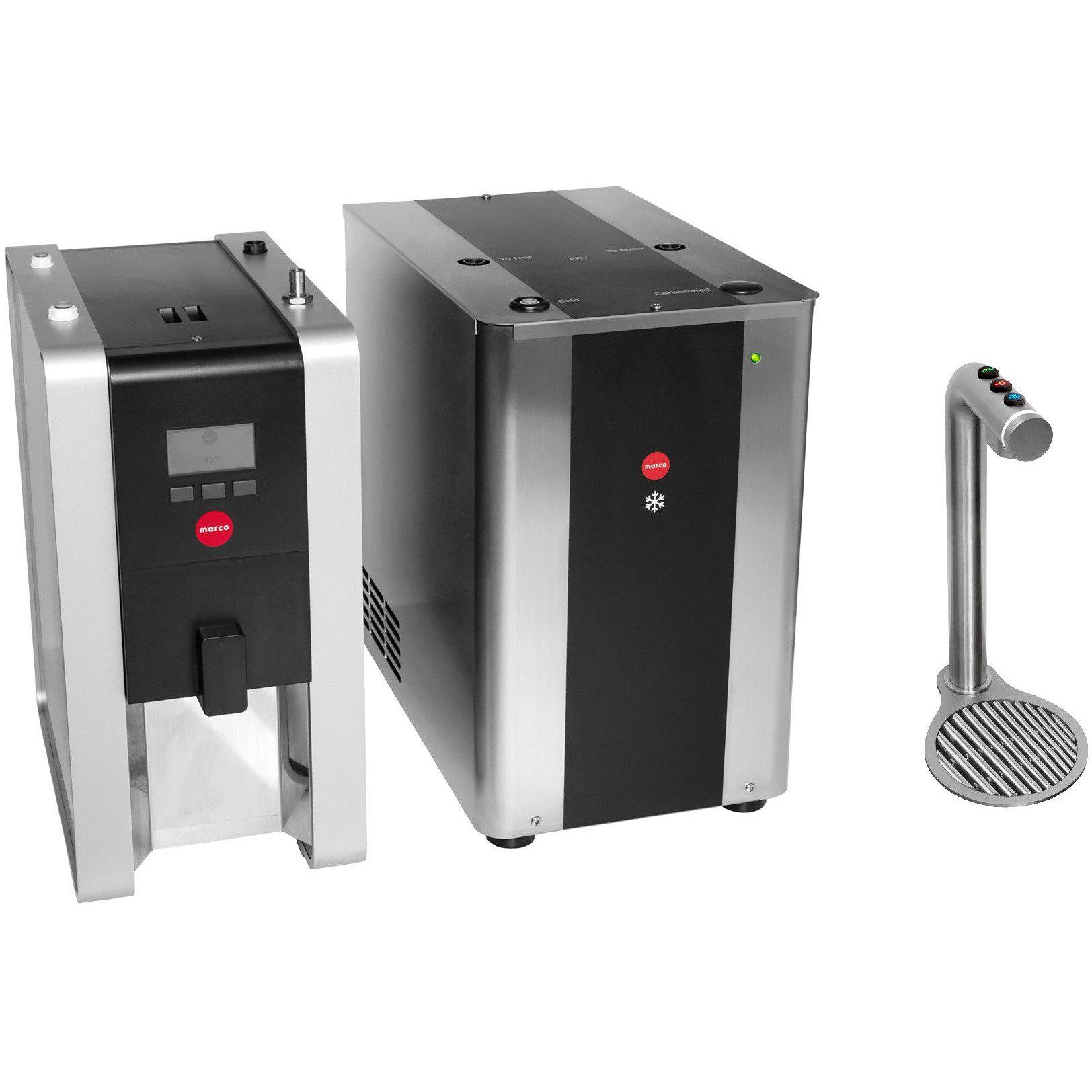

FRIIA’s setup is simple and intuitive, making it easy for newcomers to use. The system includes a recognizable faucet (called a font) that sits on top of the counter, made possible by a counter cutout. The bulky equipment is safely stowed underneath. To operate the font, simply push one of the three buttons with lighted icons for easy reading to dispense hot, cold, or sparkling water.
The undercounter aluminum block chiller for cold and sparkling water and vacuum-insulated boiler guarantee temperature precision and stability. Because aluminum block technology requires fewer components than other options, FRIIA is easier to service than the typical water delivery system.

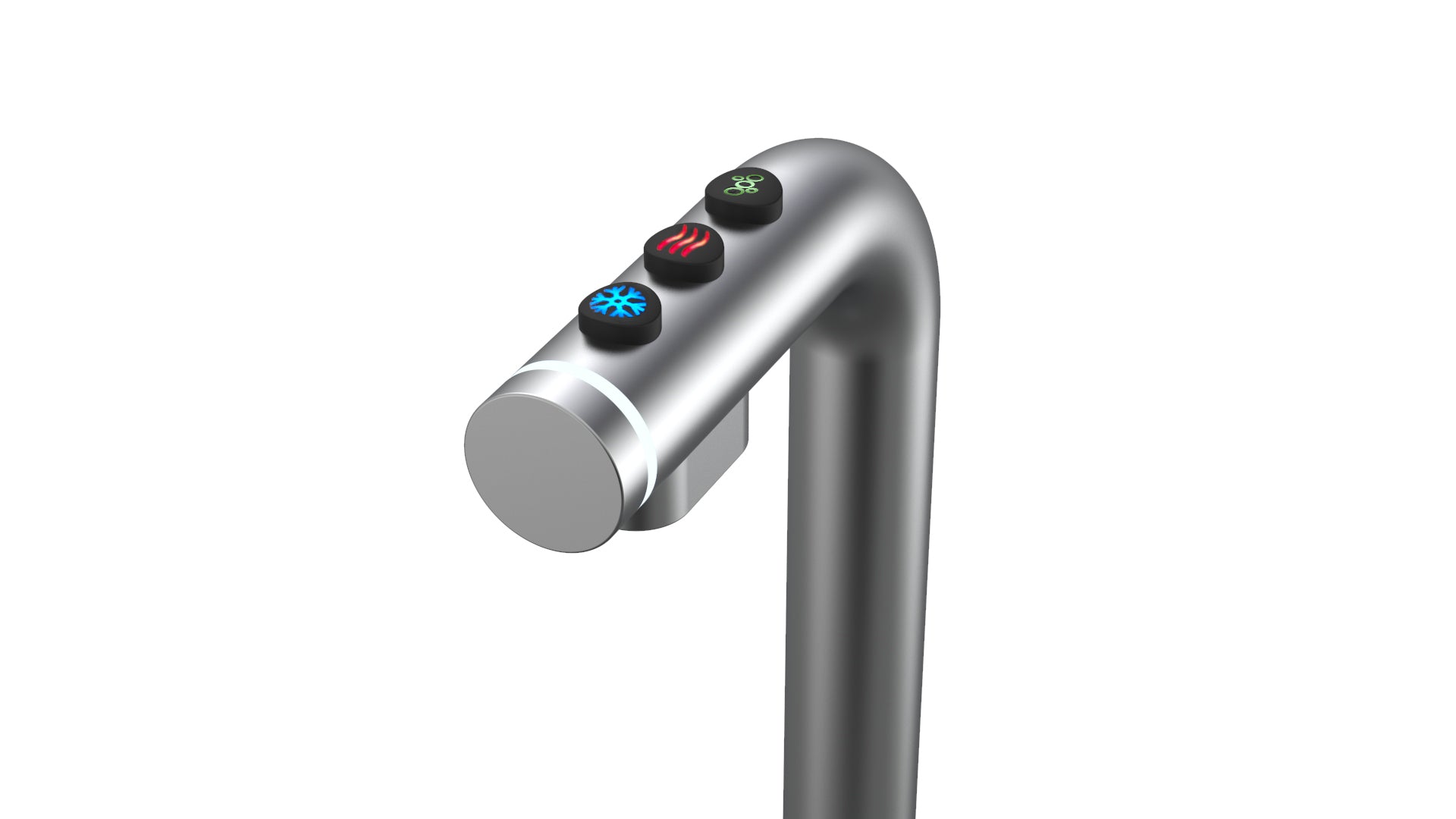

FRIIA comes in different configurations with individual functions. FRIIA HC comes standard with hot and cold water. FRIIA HCS offers hot, cold, and sparkling water. Each configuration is available in two different sizes to fit a wide variety of businesses.
Note: Co2 tank for sparkling water is not provided and must be purchased individually.
Specifications
- Hot/cold or hot/cold/sparkling options
- 0.8 or 2.1 GAL immediate hot draw off
- 23% more energy-efficient than leading competitors
- 195-250 cups per hour (chilled/sparkling 180ml ΔT = 10 °C)
- 156 cups per hour (180ml hot)
- Font drip tray included
| Product Name |
FRIIA HC
1000864US
|
FRIIA HCS
1000865US
|
FRIIA HC PLUS
1000866US
|
FRIIA HCS PLUS
1000867US
|
| FIRST DRAW OFF |
0.8 GAL |
2.1 GAL |
CUPS PER HOUR
HOT (180ML) |
156 |
CUPS PER HOUR
COLD (180ML) (ΔT = 10 °C) |
195-250 |
| FONT DIMESIONS |
5” x 1.1” x 11.8” (9.7” tap to tray) |
| BOILER DIMENSIONS |
15” x 8.5” x 17.5” |
15” x 8.5” x 24” |
| CHILLER DIMENSIONS |
17.1” x 10.2” x 17.9” |
| FONT WEIGHT |
1.6 lbs |
| BOILER WEIGHT |
20.2 lbs |
| CHILLER WEIGHT |
68.3 lbs |
CHILLER/
CARBONATOR
WEIGHT |
77.1 lbs |
| BOILER POWER REQS |
2.8kW / 220V (110V is possible upon request only) |
| CHILLER POWER REQS |
180W / 110V |
| BOILER PLUMBING REQS |
3/8” Compression or 3/8” John Guest |
| CHILLER PLUMBING REQS |
3/8” Compression or 3/8” John Guest |
| CHILLER SPECS |
Cooling Capacity –7.9/10.5 gal/hr | Compressor Power–1/8hp
Cooling System–Aluminium Block | Refrigerant–R290 |
