Fetco IP44 CBS-52H-15 Dual Station Brewer 3x4.0 kW/440-480V C52196MIP
FETCO® Maritime Series equipment is specially designed for maritime use. IP44 certified compliant coffee brewing equipment is perfect for front-of-house or back-of-house applications on cruise ships. The twin 1.5 gallon IP44 CBS-52H-15 coffee brewer comes with three phase electrical configuration, stepdown transformer, maritime package, 304 stainless steel, half batch function and brew basket clips.

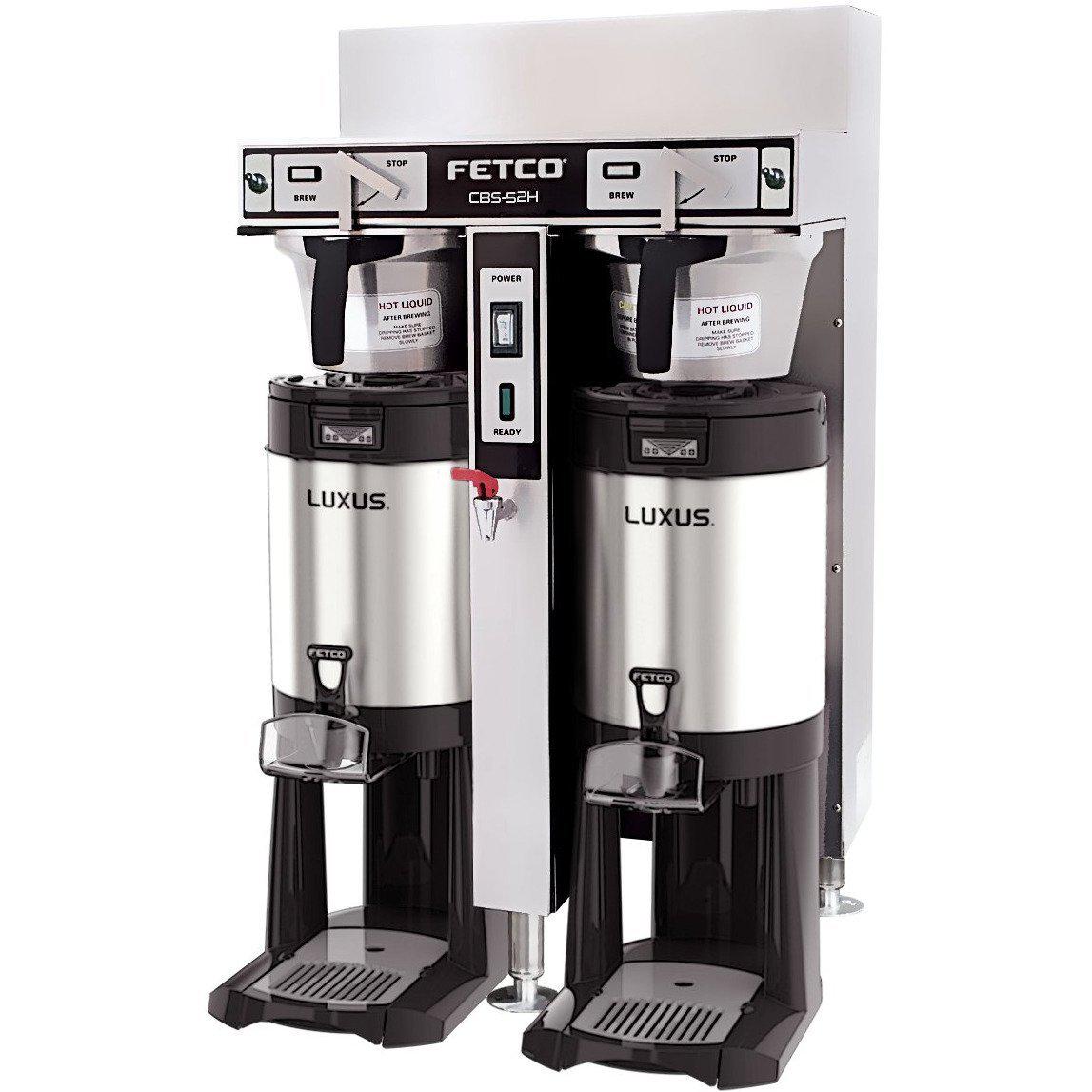

Brewer shown with 1.5 gallon LUXUS® Thermal Dispenser (L3D-15). The 1.5 Gallon LUXUS® Thermal Dispenser (TPD-15) and 1.5 gallon LUXUS® Thermal Server (L3S-15) are also available and sold separately.
Brewers can be used with:
TPD-15, L3D-15, L3S-15
Features
IP44 Marine Certified
Patented, watertight design is ideal for use on cruise ships.
Safe and Versatile
Brew basket clips keeps filter in place for ease of brewing. Brews into a variety of servers for convenient dispensing.
3 Gallons at a Time
Brews up to three gallons per batch.
Specifications
| MEASUREMENTS |
| Height (in.) |
35 3/4" |
| Width (in.) |
21" |
| Depth (in.) |
19 1/2" |
| Weight (lbs.) |
97 |
| BREWING CAPACITY |
| Volume (L) |
2 X 5.7 |
| Volume (g) |
2 X 1.5 gallons |
| Output (gph) |
10.5-22.5 |
| (8oz.) cups/hour |
≈475 |
| (12oz.) cups/hour |
≈317 |
| (16oz.) cups/hour |
≈238 |
| (20oz.) cups/hour |
≈190 |
| STANDARD ELECTRICAL CONFIGURATIONS |
| Electrical Configuration |
Terminal Block |
| Volts |
220-240; 480 |
| Amps |
11.6-23.5 |
| Phase |
1, 3 |
| SPECIAL FEATURES |
| Cascading Spray Dome |
No |
| Extractor Technology |
No |
| Pulse Brew |
No |
| Brew Basket Locks |
Yes |
| Hot Water Spigot |
Yes |
| PROGRAMMABLE |
| Programmable Brew Volume |
Yes |
| Programmable Brew Time |
Yes |
| Programmable Brew Temperature |
Yes |
| Programmable Pre-wet Percentage |
No |
| Programmable Drip Delay |
No |
| Programmable Low Temp |
No |
Resources
Sell Sheet
User's Guide
