Fetco CBS-52H-15 Dual Station Brewer C52016
This twin 1.5 gallon brewer was designed with oversized stainless steel brew baskets for heavier brew ratios. Other features include dual brew basket locks incorporated into the start switch, spray-over volume consistency and a gravity-fed dispense tube system that resists lime buildup. Brew directly into two LUXUS Thermal Dispensers to keep beverages hot and fresh for hours.

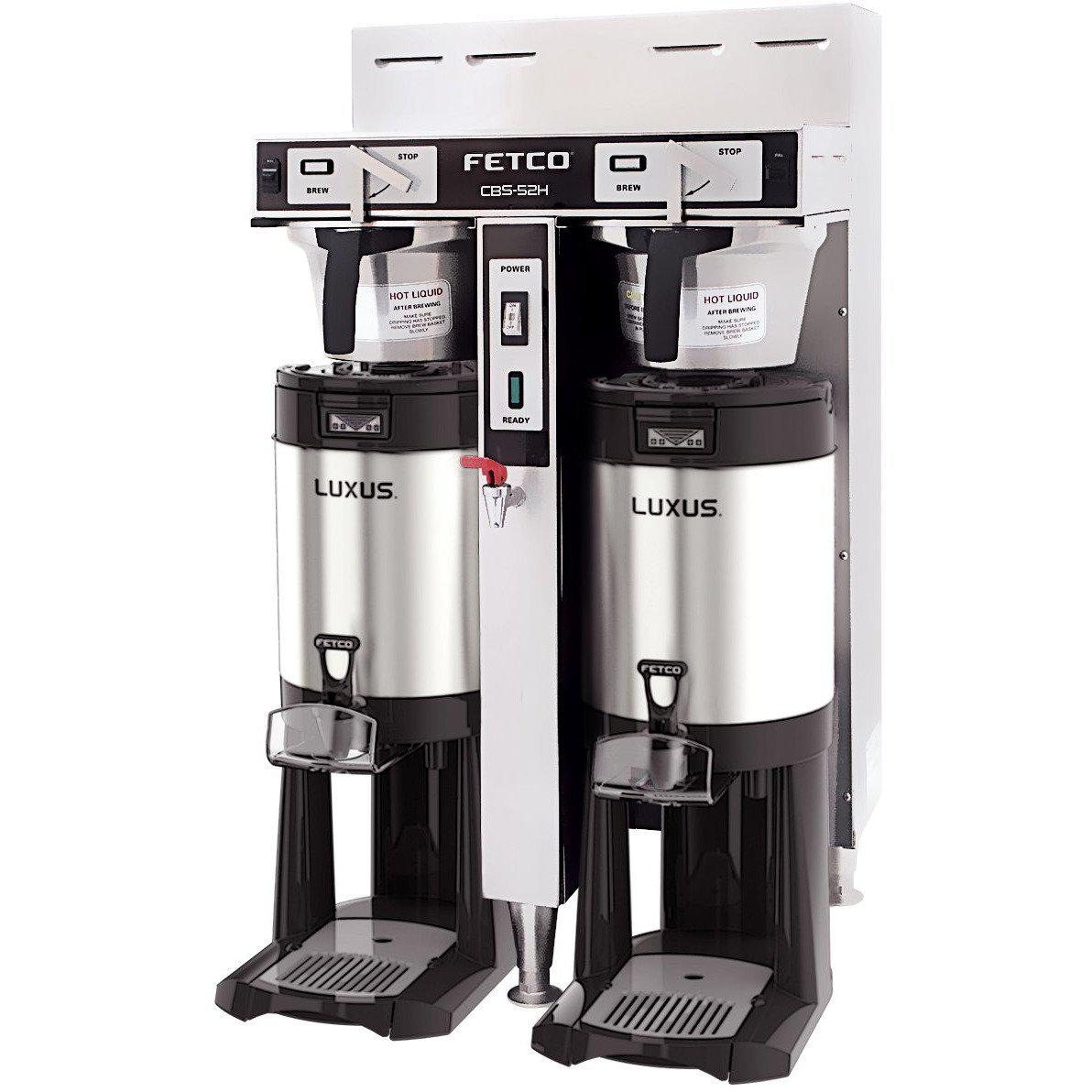

Shown with 1.5 Gallon LUXUS Thermal Dispenser (L4D-15). The 1.5 Gallon LUXUS Thermal Dispenser (TPD-15) and 1.5 Gallon LUXUS Thermal Dispenser (L4S-15) are available and sold separately.
Features
Beset Seller
The dual station 1.5 gallon brewer is a popular choice across many segments due to its speed, capacity and reliable performance during peak service times.
Intermittent Spray-Over
Our patented intermittent spray-over feature controls steeping process to deliver well-balanced, great tasting coffee from the first cup to the last.
Simple Handle Operation
Brew a batch of hot, delicious coffee with the simple turn of a handle.
Specifications
| MEASUREMENTS |
| Height (in.) |
36 |
| Width (in.) |
21 |
| Depth (in.) |
19 1/2 |
| Weight (lbs.) |
90 |
| BREWING CAPACITY |
| Volume (g) |
2 x 1.5 gallon |
| Output (gph) |
11-33 |
| (8oz.) cups/hour |
≈475 |
| (12oz.) cups/hour |
≈317 |
| (16oz.) cups/hour |
≈238 |
| (20oz.) cups/hour |
≈190 |
| STANDARD ELECTRICAL CONFIGURATIONS |
| Electrical Configuration |
Single, Three |
| Volts |
120/208-240, 480 |
| Amps |
22.4-29.6 |
| Phase |
1, 3 |
| SPECIAL FEATURES |
| Cascading Spray Dome |
No |
| Extractor Technology |
No |
| Pulse Brew |
No |
| Brew Basket Locks |
Yes |
| Hot Water Spigot |
Yes |
| PROGRAMMABLE |
| Programmable Brew Volume |
Yes |
| Programmable Brew Time |
Yes |
| Programmable Brew Temperature |
Yes |
| Programmable Pre-wet Percentage |
No |
| Programmable Drip Delay |
No |
| Programmable Low Temp |
No |
Resources
Sell Sheet
User's Guide
Wiring Diagram
