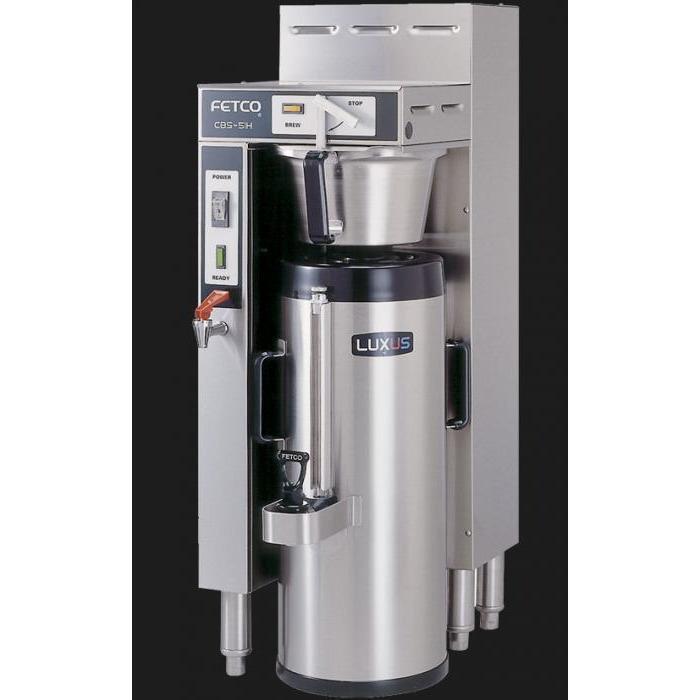

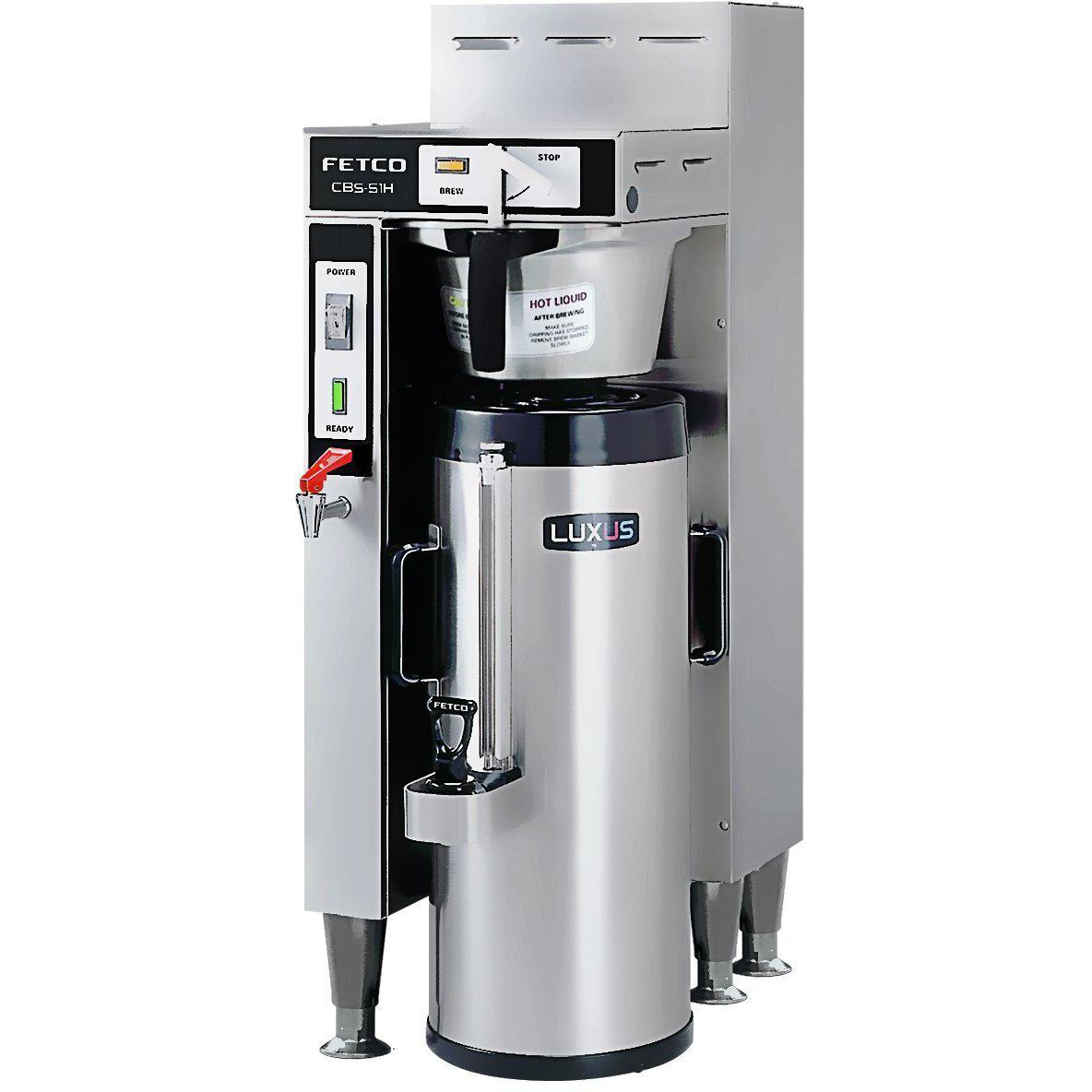

Fetco CBS-51H-15 Single Station Brewer C51026
Brew directly into the 1.5 Gallon TPD LUXUS Thermal Dispenser, cap and transport, and your remote beverage station is ready to go. Featuring a dual brew basket lock incorporated into the start switch, spray-over volume consistency and a gravity-fed dispense tube system that resists lime buildup, this brewer provides superior performance wherever you need it.
Features
Best Seller
The 1.5 gallon brewer is a popular choice across many segments due to its speed, capacity and reliable performance during peak service times.
Simple Handle Operation
Brew a batch of hot, delicious coffee with the simple turn of a handle.
Intermittent Spray-Over
Our patented intermittent spray-over feature controls the coffee steeping process, delivering well-balanced, great tasting coffee from the first cup to the last.
Specifications
| MEASUREMENTS |
| Height (in.) |
35 3/4 |
| Width (in.) |
12 |
| Depth (in.) |
19 1/2 |
| Weight (lbs.) |
57 |
| BREWING CAPACITY |
| Volume (L) |
3.8 |
| Volume (g) |
1.5 |
| Output (gph) |
4.5-19.5 |
| (8oz.) cups/hour |
≈238 |
| (12oz.) cups/hour |
≈159 |
| (16oz.) cups/hour |
≈119 |
| (20oz.) cups/hour |
≈95 |
| STANDARD ELECTRICAL CONFIGURATIONS |
| Electrical Configuration |
Cord and Plug/Terminal Block |
| Volts |
120, 120/208-240 |
| Amps |
14.7(120), 11.3-33.8 |
| Phase |
1 |
| SPECIAL FEATURES |
| Cascading Spray Dome |
No |
| Extractor Technology |
No |
| Pulse Brew |
No |
| Brew Basket Locks |
Yes |
| Hot Water Spigot |
Yes |
| PROGRAMMABLE |
| Programmable Brew Volume |
Yes |
| Programmable Brew Time |
Yes |
| Programmable Brew Temperature |
Yes |
| Programmable Pre-wet Percentage |
No |
| Programmable Drip Delay |
No |
| Programmable Low Temp |
No |
Resources
Sell Sheet
User's Guide
Wiring Diagram
