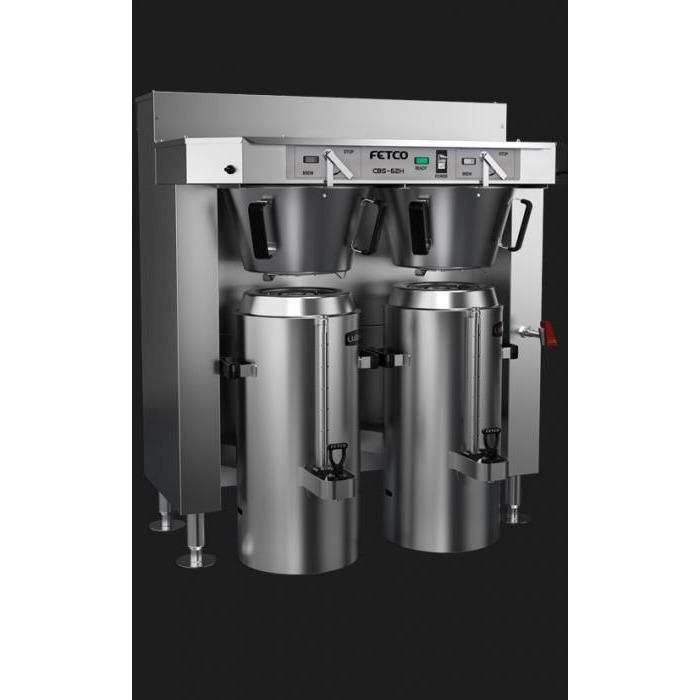

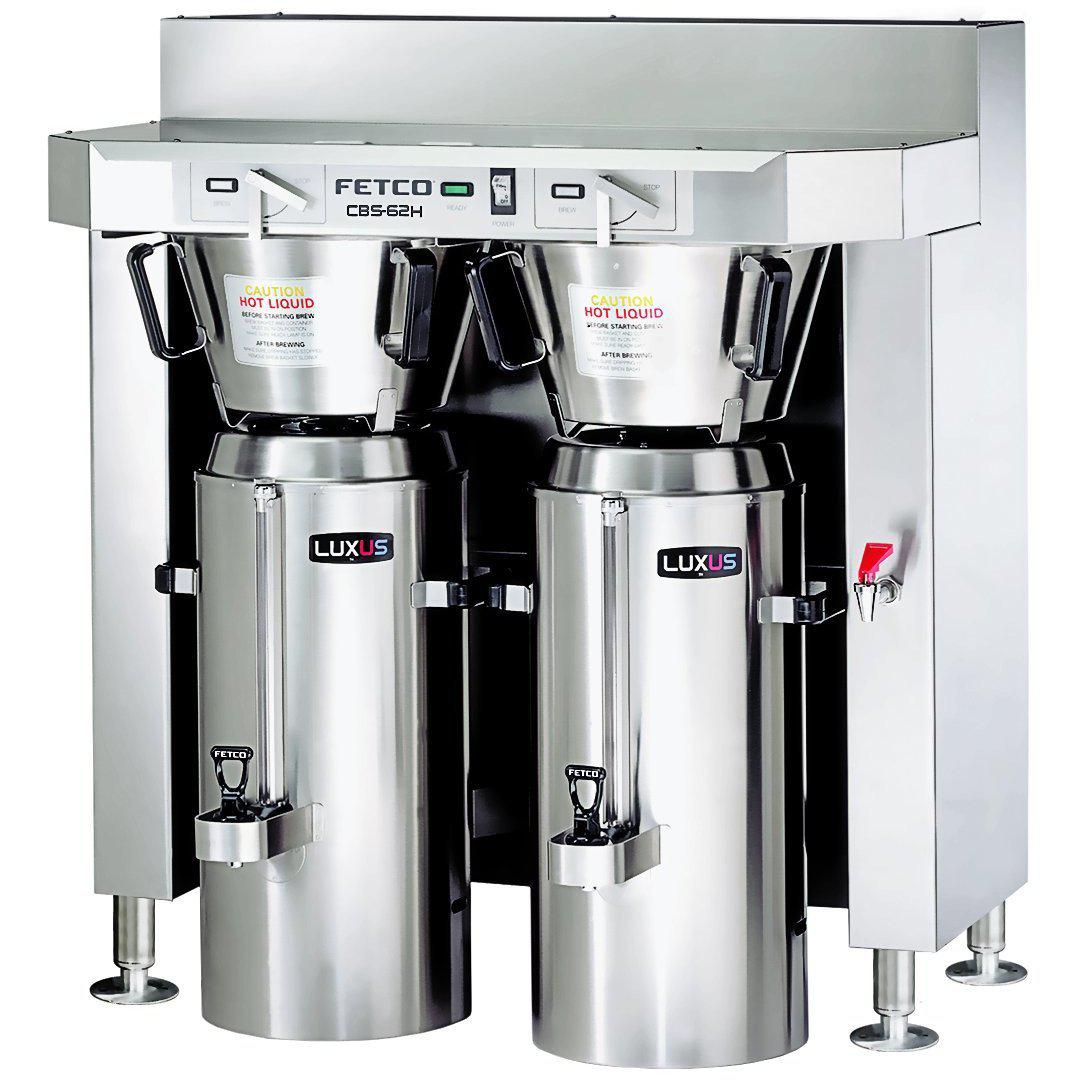

Fetco IP44 CBS-62H-30 Dual Station Brewer 6x4.0 kW/440-480V C62186MIP
FETCO® 6000 Series IP44 maritime brewers feature brew basket locks incorporated into the start switch for added safety. They also deliver volume consistency, thanks to the spray over feature that allows you to control the water contact time, resulting in perfectly extracted coffee every time. Our patented gravity fed tube helps resist lime build-up.
The twin 3.0 gallon IP44 CBS-62H-30 coffee brewer comes with three phase electrical configuration, stepdown transformer, maritime package, 304 stainless steel, half batch function and brew basket clips.
Brewers can be used with:
TPD30
Features
Innovation
Gravity-fed tube system reduces lime build-up, which can harm equipment
IP44 Marine Certified
Patented, watertight design is IP44 certified for use on cruise ships.
Ultrasafe
FETCO® 6000 Series IP44 maritime brewers feature brew basket locks incorporated into the start switch for added safety.
Specifications
MEASUREMENTS |
Height (in.) |
40 |
Width (in.) |
35 1/2 |
Depth (in.) |
22 3/8 |
Weight (lbs.) |
170 |
BREWING CAPACITY |
Volume (L) |
2 X 11.4 |
Volume (g) |
2 X 3 |
Output (gph) |
25.8-18 |
(8oz.) cups/hour |
≈864 |
(12oz.) cups/hour |
≈576 |
(16oz.) cups/hour |
≈432 |
(20oz.) cups/hour |
≈346 |
STANDARD ELECTRICAL CONFIGURATIONS |
Electrical Configuration |
Terminal Block |
Volts |
220-240, 440-480 |
Amps |
11.4-54 |
Phase |
1, 3 |
SPECIAL FEATURES |
Cascading Spray Dome |
No |
Extractor Technology |
No |
Pulse Brew |
No |
Brew Basket Locks |
Yes |
Hot Water Spigot |
Yes |
PROGRAMMABLE |
Programmable Brew Volume |
Yes |
Programmable Brew Time |
Yes |
Programmable Brew Temperature |
Yes |
Programmable Pre-wet Percentage |
No |
Programmable Drip Delay |
No |
Programmable Low Temp |
No |
Resources
Sell Sheet
User's guide
Wiring Instructions
