Description
Combining the greatest energy efficiency and ease of use in a hot water dispenser, the Marco EcoSmart Under Counter model saves you plenty of space and money. Made of 95% recyclable materials, it will even reduce your eco footprint.
Elegantly designed with a Tubular or Uber Font that sits on top of the counter and a hidden boiler stowed under the counter, this system is a smart choice for businesses with limited room for equipment.
The Marco EcoBoiler Under Counter serves a wide range of businesses and hospitality locations. It’s the ideal solution for coffee shops, restaurants, canteens, and offices that need a self-service station or just a reliable hot water source for coffee, tea, and refreshments.
This boiler system comes in a variety of setups with your choice of countertop Tubular or Uber font and under-counter EcoBoiler and EcoSmart boiler.
The under-counter EcoBoiler units are insulated and designed to provide water temperature stability for total consistency. They’re incredibly efficient and reliable—no variations in temperature from cup to cup.
The EcoSmart boilers add an LCD screen and temperature adjustability through push-button operation. You can easily set and monitor the temperature for precise control.
For cafes with tea service, this means that you’ll be able to set the exact temperature for each type of tea to promote the best flavors in the cup.
With either of these models, businesses can expect an instant hot water supply at consistent and precise temperatures in a sleek, economical package.
Note: This system comes in different boiler sizes with different output capacities. Per hour, the UC4 EcoSmart provides 115 cups, and the UC10 EcoSmart and UC45 EcoSmart supply up to 311 cups.
How it Works
With versatility in mind, Marco designed the EcoBoiler models to be easy to use. To dispense hot water, simply place a container under the font and push the button provided with the font.
The boiler unit under the counter will show you when the machine is ready to use. When the “Ready” light on the front of the unit is green, you can draw hot water. If this light is flashing red, the boiler is still coming up to temperature.
To use the EcoSmart models, simply set the desired water temperature using the push buttons on the under-counter boiler and navigate with the LCD screen. Once you’ve programmed the temperature, push the font button to access hot water at the temperature of your choice.
Fonts
TUBULAR FONT
Single dispense tubular font. Compatible with all Marco undercounter water boilers (sold separately) Up to 3 fonts from a single boiler (Ecosmart UC45/Ecoboiler UC45)
UBER FONT
Dual dispense font with built in drip tray. Two in tile buttons can be fed by two boilers of separate temperatures. Compatible with all Marco undercounter water boilers (sold separately.) Up to 3 fonts from a single boiler (4 litre to 45 litre UC4/ UC10/UC45 )
LOW UBER FONT
Font for undercounter units. Compatible with all Marco undercounter water boilers (sold separately.) A sleek and stylish space-saving solution that allows for more face-to-face customer engagement.
Specifications
BOILERS
NAME
ORDER CODE |

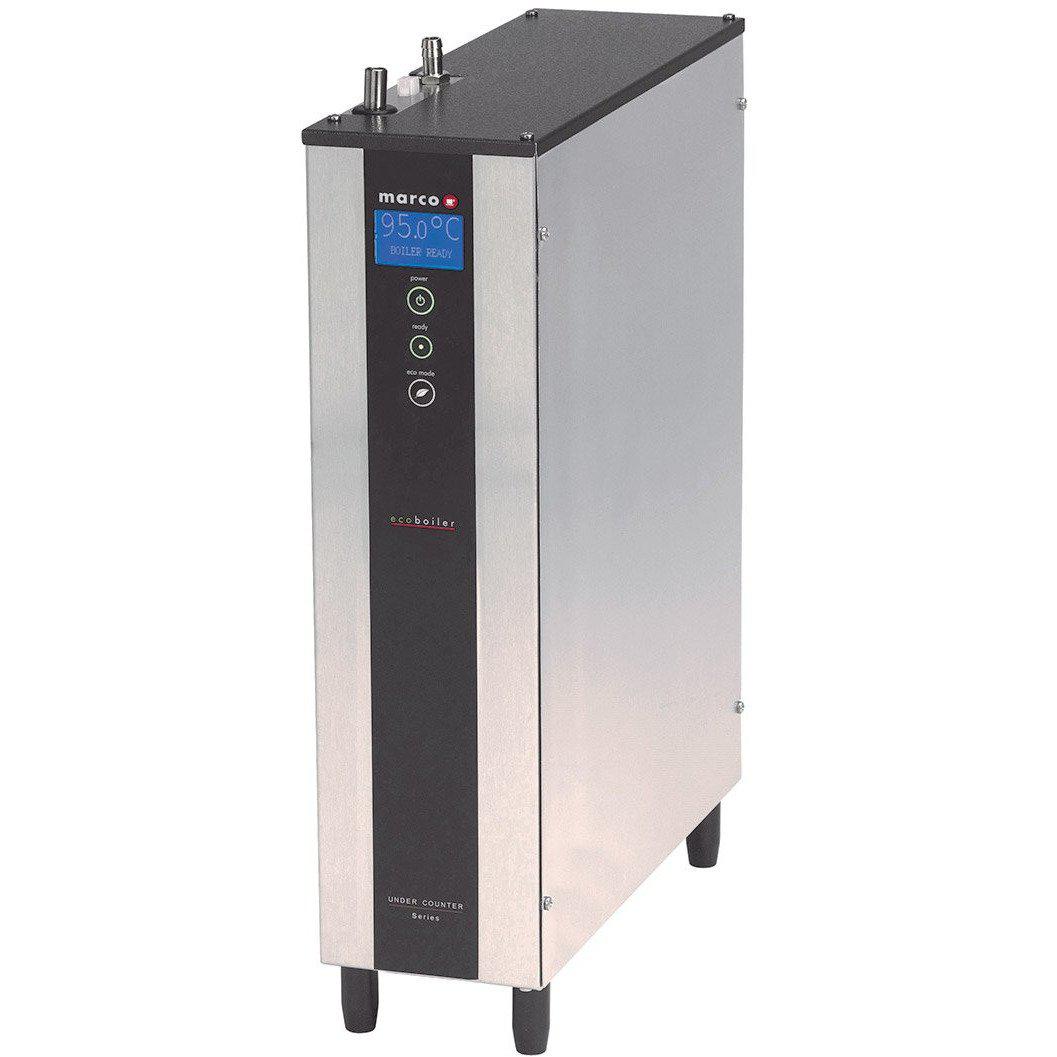

EcoSmart UC4
1000750US |

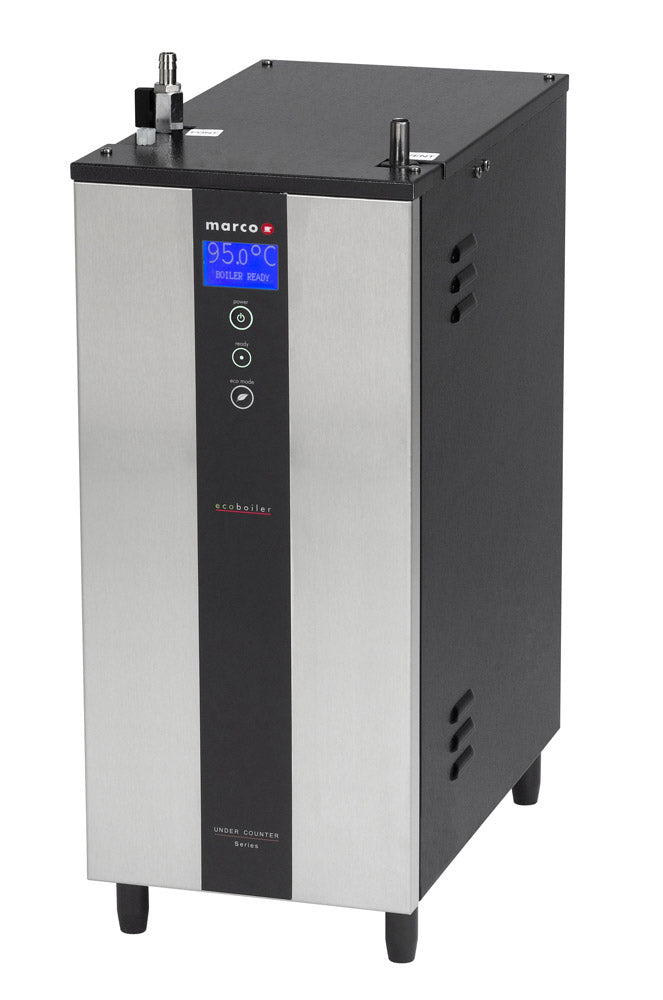

EcoSmart UC10
1000752US |

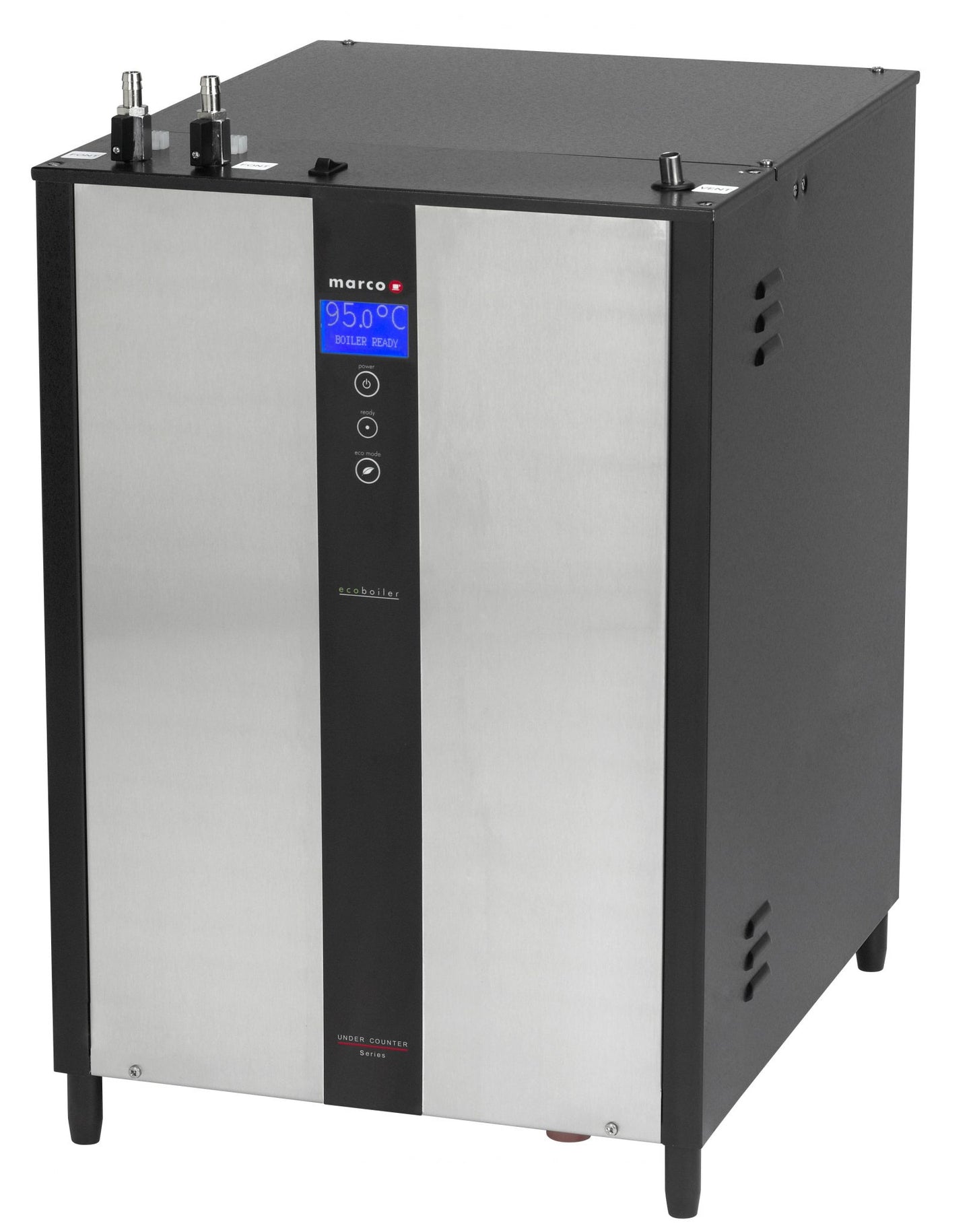

EcoSmart UC45
1000754US |
| POWER |
2.4kW @ 230V |
5.6kW @ 230V |
5.6kW @ 230V |
IMMEDIATE
DRAW OFF |
1 GAL |
2.6 GAL |
11.8 GAL |
CUPS
PER HOUR |
115 |
311 |
311 |
DIMENSIONS
(D x W x H inches) |
15.5 x 5.2 x 23 |
15.5 x 8.8 x 23 |
19.4 x 16.5 x 26.2 |
| NEMA |
L6-20P |
L6-30P |
L6-30P |
| PLUMBING REQS |
3/8" Compression
or 3/8" John Guest |
3/8" Compression
or 3/8" John Guest |
3/8" NPT |
